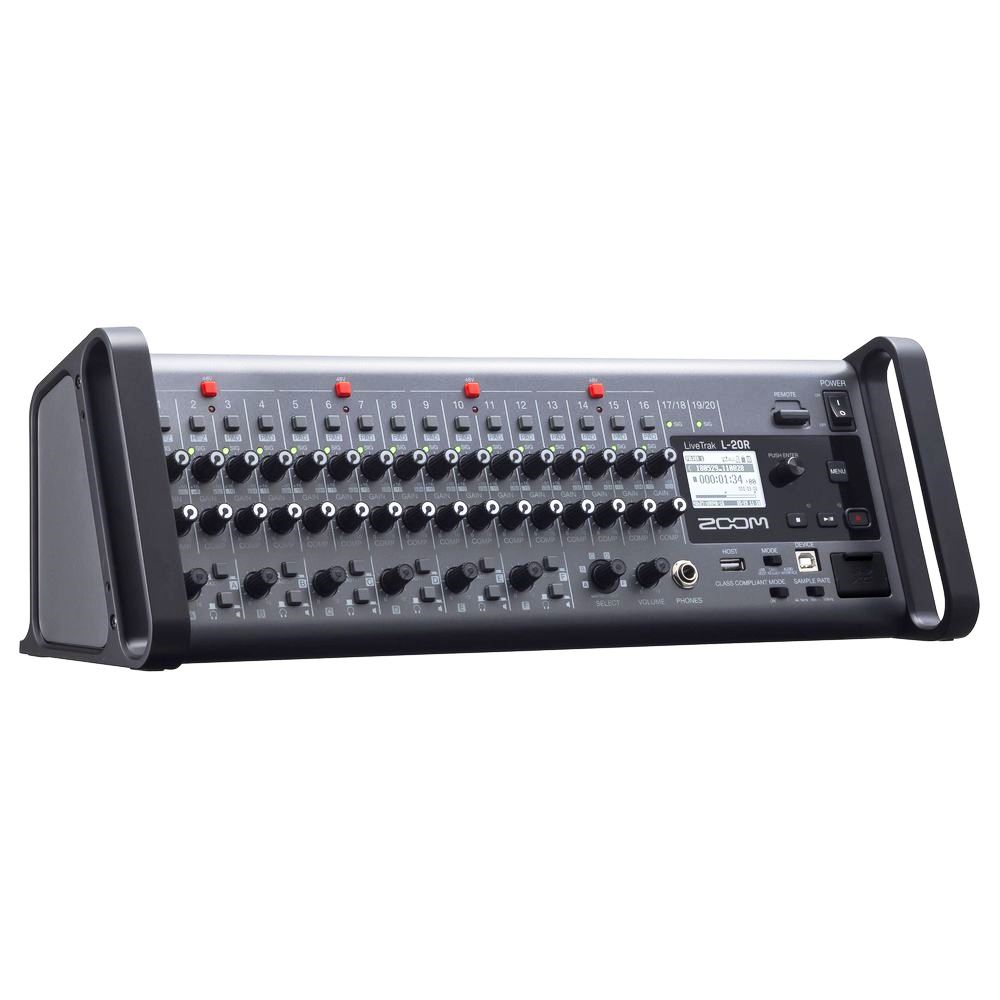

Zoom LiveTrak L-20R Digital Mixer - 20 Channels

Whether you want to capture a rehearsal, produce a quick demo, or create a great-sounding concert recording, Zoom’s LiveTrak L20R makes it easy. It enables you to record up to 22 individual channels directly to an SD card, supplies you with custom headphone mixes for up to six band members, and delivers a polished live mix — complete with studio-quality effects. With the L20R, you can finish your entire project in-the-box or transfer all 20 discrete tracks to your DAW for editing and mixing. Beyond that, you can use the L20R as a rock-solid 22-in/4-out USB audio interface for your Mac, PC, or iOS device. What’s more, the LiveTrak L20R boasts compatibility with Zoom’s Remote Mixer app, allowing an FOH engineer and six musicians to take command of their own mix via iPad.

Note: iPad required for operation. Compatible with all iPad Air models, iPad Mini 2 and later, iPad Pro, and iPad (2017), running iOS 10.3.3 or newer.

Type: Rackmount Digital Mixer
Channels: 20 (16 x mono, 2 x stereo)

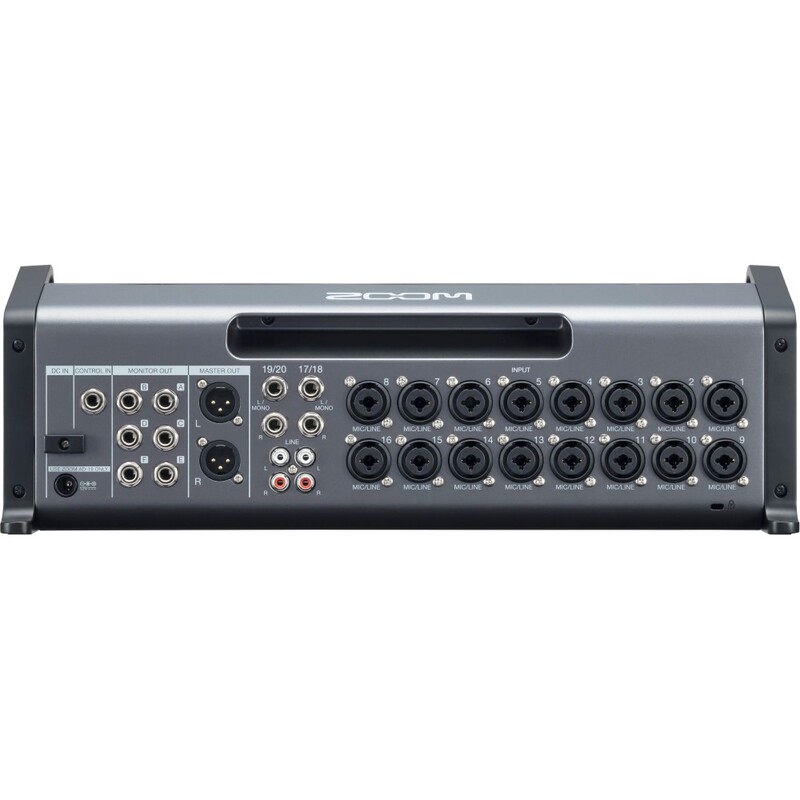

Inputs - Mic Preamps: 2 x XLR-1/4" combo (mic/line/Hi-Z), 14 x XLR-1/4" combo (mic/line)
Phantom Power: 16 channels
Inputs - Line: 2 x Dual RCA Stereo (line), 4 x 1/4" (2 x stereo line)
Outputs - Main: 2 x XLR (master)
Aux Sends: 6 x 1/4" (monitor out A-F)
Remote: 1 x 1/4" (control footswitch)
USB: 1 x Type B, 1 x Type A
Computer Connectivity: USB (22 x 4)
Bluetooth: BTA-1 Adapter (included)
Headphones: 1 x 1/4"
A/D Resolution: 24-bit/96kHz
EQ Bands: 3-band EQ, Low Cut
Effects: 20 x Effects; Reverb, Delay, Chorus
Signal Processing: Compression
Transport Controls: Yes
Storage: SDHC (max 32GB), SDXC (max 512GB)
Software: Remote Mixer app, L-20 Control iPad app
Rackmountable: Yes (rack ears included)
Power Source: 12V DC external power supply (included)
Height: 5.97"
Depth: 6.22"
Width: 17.24"
Weight: 5.4 lbs.
